Product Name: dumper body transmission device 类 别： FZ1-2A型C型翻车机 Category: Fz1-2a type C car dumper 用 户：攀枝花新钢钒股份有限公司炼铁厂等 User: ironmaking plant of Panzhihua New Steel Vanadium Co., Ltd

Transmission

Dumper unloading system is one of the main products of Dalian Tongda mining and Metallurgical Machinery Co., Ltd. Dumper unloading system is an efficient and special unloading equipment used to dump the bulk materials such as coal, ore, chemical raw materials, etc. which are loaded by the general open car of the railway. The equipment is widely used in the basic industries such as metallurgy, electric power, chemical industry, port and wharf.

FZ1-2A型“C”形翻车机本体主要由转子、夹紧装置、靠板组成、托辊装置、端部止挡、导料装置、传动装置、振动器，液压系统等组成。

The body of fz1-2a "C" tipper is mainly composed of rotor, clamping device, backup plate, idler device, end stop, guide device, transmission device, vibrator, hydraulic system, etc.

传动装置主要由电机、减速器、制动器、联轴器、传动小齿轮、及底座等组成，其作用是驱动翻车机转子部分翻转。

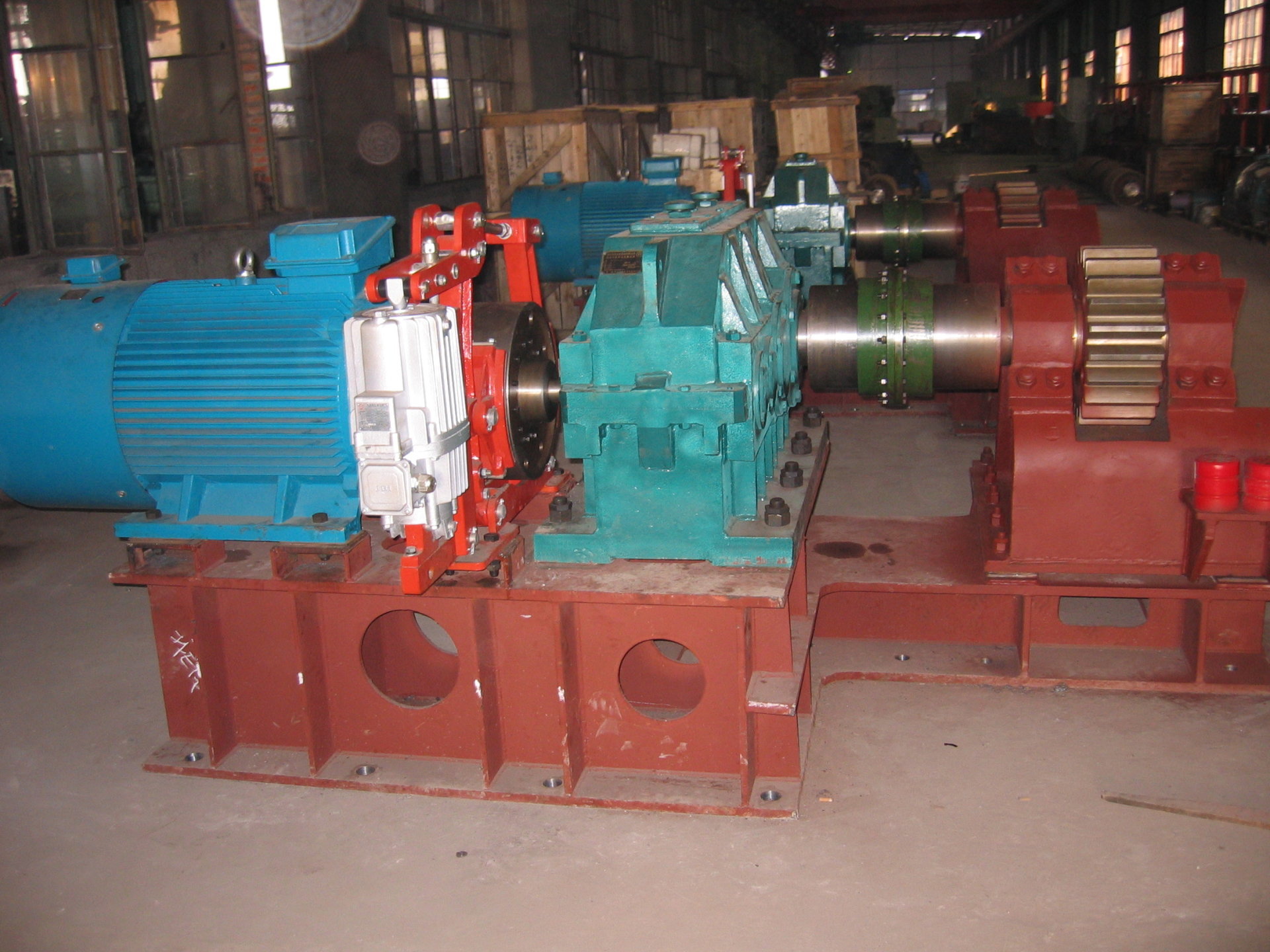

The transmission device is mainly composed of motor, reducer, brake, coupling, transmission pinion, and base. Its function is to drive the rotor part of the tipper to turn over.

传动装置共设两套，独立工作，安装在翻车机两端，变频电机为YZP系列，其特点是有较高的过载能力和可以调节输出转速。减速机是硬齿面圆柱齿轮减速器，其特点是体积小，承载力大，效率高。

There are two sets of transmission devices, which work independently and are installed at both ends of the dumper. The frequency conversion motor is YZP series, which is characterized by high overload capacity and adjustable output speed. The reducer is a hard face cylindrical gear reducer, which is characterized by small volume, large bearing capacity and high efficiency.
