Dumper body - heavy vehicle shunter

Page view:

Dumper body - heavy vehicle shunter



Product Name: heavy car shunter

Category: Fz1-2a type C car dumper

Users: ironmaking plant of Panzhihua New Steel Vanadium Co., Ltd., Liaoning Shenmei Hongyang Thermal Power Co., Ltd., etc

Heavy truck tuning machine

Dumper unloading system is one of the main products of Dalian Tongda mining and Metallurgical Machinery Co., Ltd. Dumper unloading system is an efficient and special unloading equipment used to dump the bulk materials such as coal, ore, chemical raw materials, etc. which are loaded by the general open car of the railway. The equipment is widely used in the basic industries such as metallurgy, electric power, chemical industry, port and wharf.

Fz1-2a "C" car dumper is mainly composed of body, heavy car dumper, empty car dumper, transfer platform, wheel clamp, double arm pusher, safety stop, hydraulic system, etc.

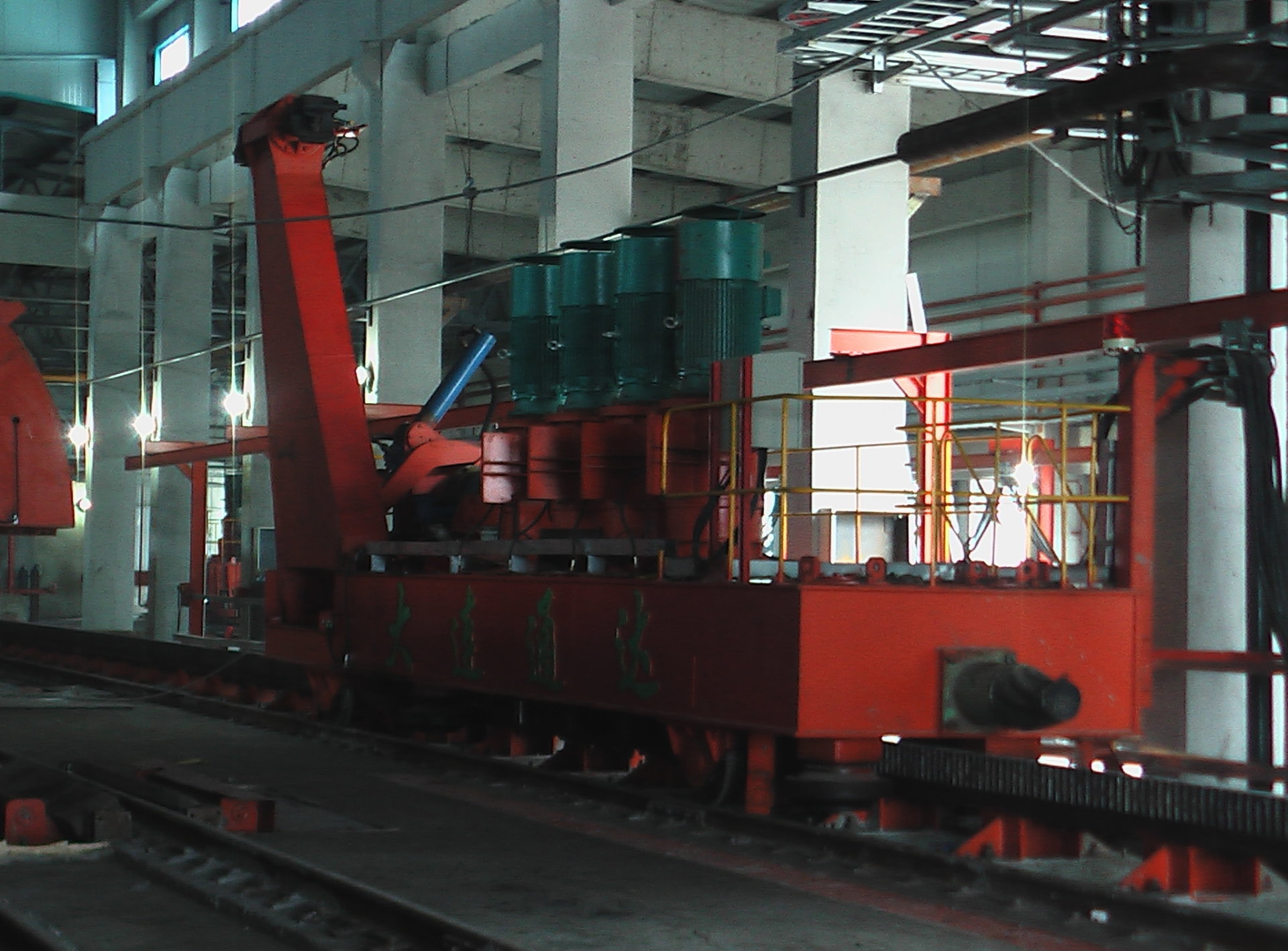

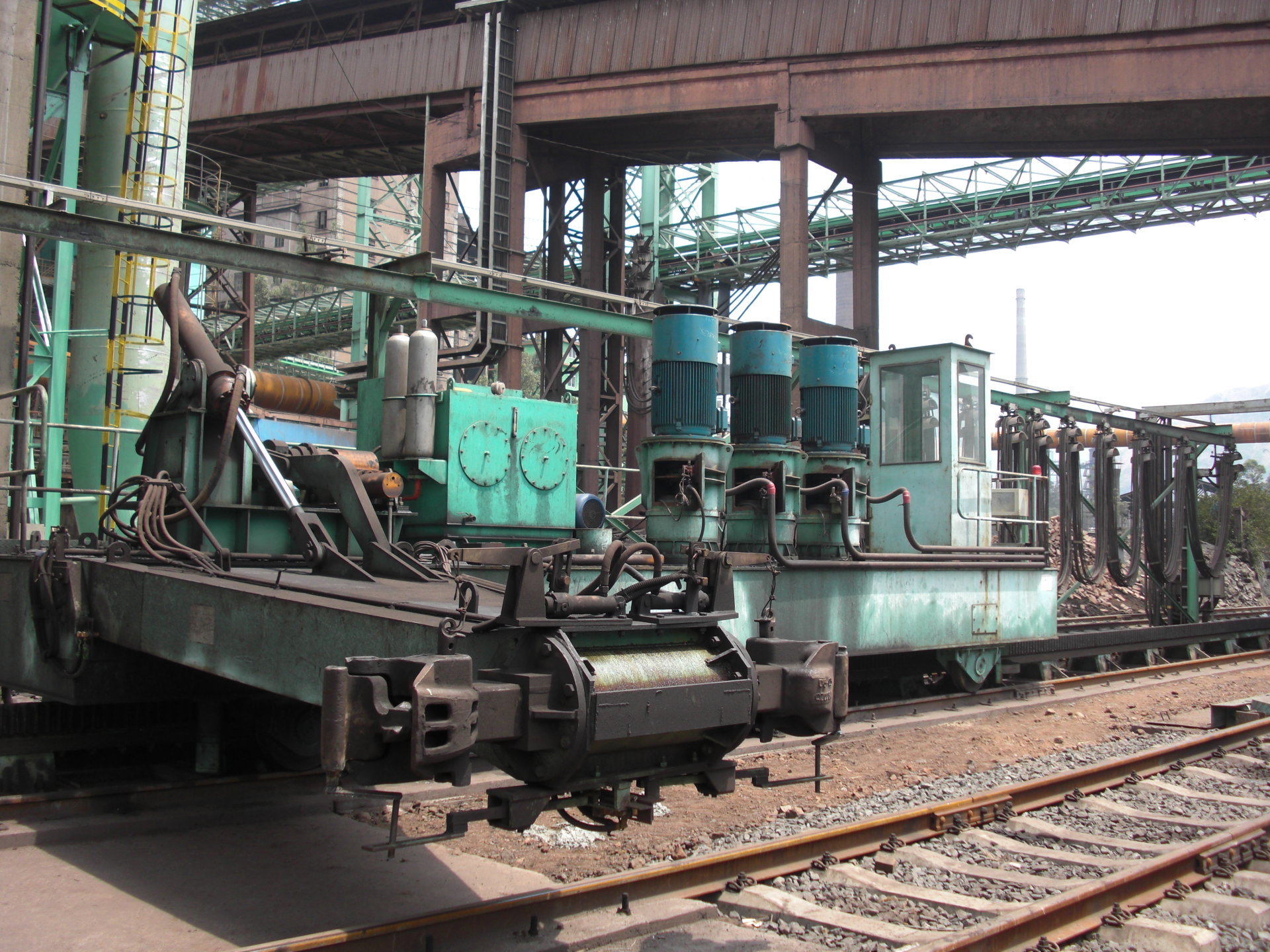

The heavy car shunter is an important equipment in the complete set of equipment of the unloading line of the turn back dumper, which is used to pull the whole heavy car forward to a parking space, pull the single volume heavy car to the designated position in the dumper, and push the empty car in the dumper to the transfer platform. At present, it has been widely used in bulk material transportation system of large enterprises such as wharf, power plant, steel plant, coking plant, etc. It is driven by gear and rack with stable operation and accurate positioning. There are two types of structure for pitching arm: rack cylinder + live weight type and rack cylinder + balance cylinder.


Corresponding parameter set not found, please add it in property template of background
