Dumper body wheel clamp

Product Name: wheel clamp

类 别： FZ1-2A型C型翻车机

Category: Fz1-2a type C car dumper

用 户：攀枝花新钢钒股份有限公司炼铁厂、辽宁沈煤红阳热电有限公司等

Users: ironmaking plant of Panzhihua New Steel Vanadium Co., Ltd., Liaoning Shenmei Hongyang Thermal Power Co., Ltd., etc

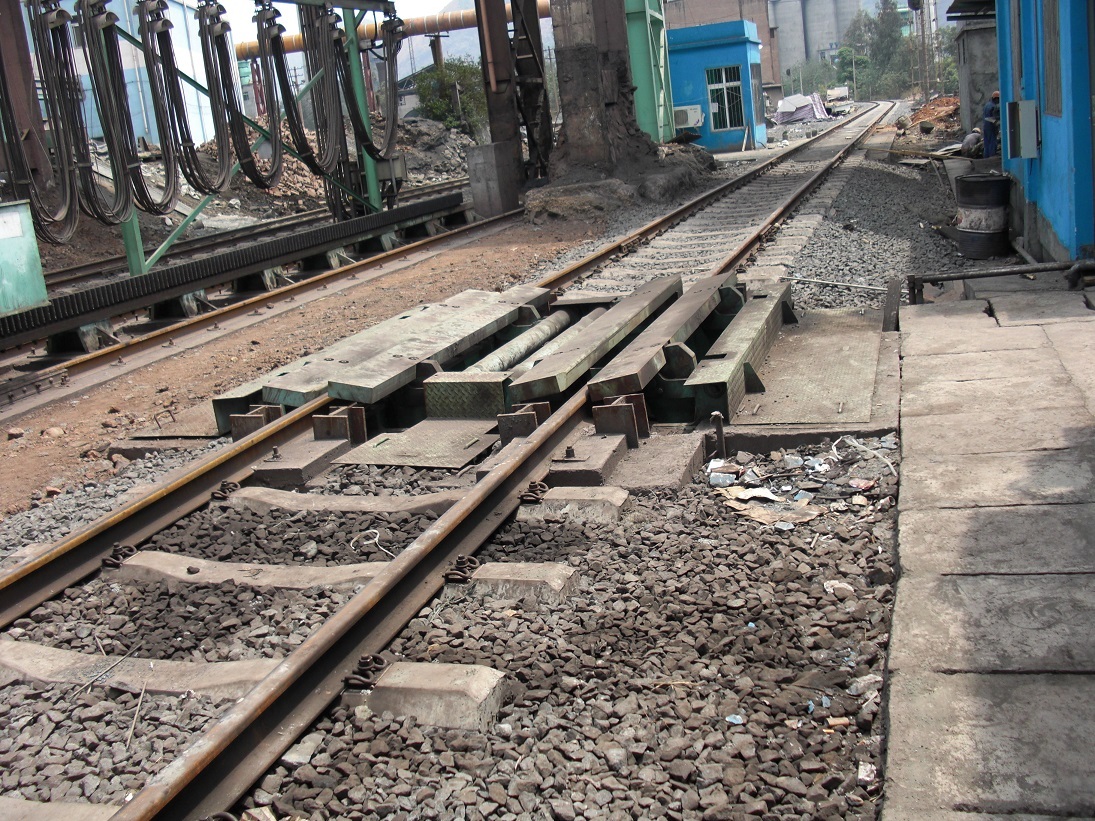

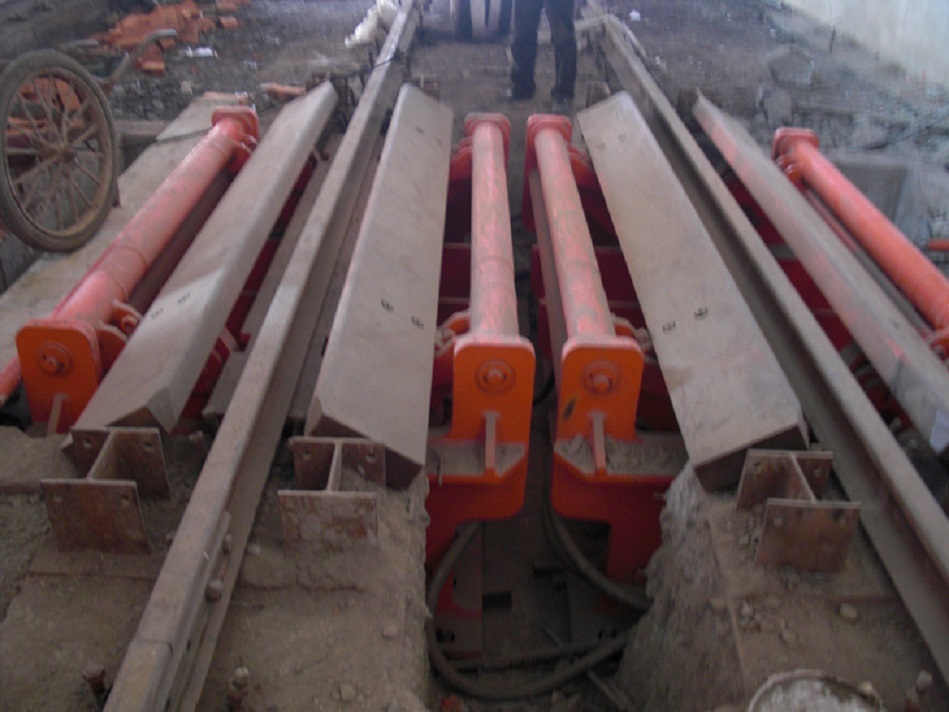

Wheel clamp

Dumper unloading system is one of the main products of Dalian Tongda mining and Metallurgical Machinery Co., Ltd. Dumper unloading system is an efficient and special unloading equipment used to dump the bulk materials such as coal, ore, chemical raw materials, etc. which are loaded by the general open car of the railway. The equipment is widely used in the basic industries such as metallurgy, electric power, chemical industry, port and wharf.

FZ1-2A型“C”形翻车机主要由本体、重车调车机、空车调车机、迁车台、夹轮器、双臂推车器、安全止挡器、液压系统等组成。

Fz1-2a "C" car dumper is mainly composed of body, heavy car dumper, empty car dumper, transfer platform, wheel clamp, double arm pusher, safety stop, hydraulic system, etc.

夹轮器是翻车机卸车线设备之一，是使停止后的车辆不因受外力作用而移动的安全装置。

The wheel clamp is one of the unloading line equipment of the dumper, which is a safety device to prevent the stopped vehicle from moving due to the external force.

本装置采用了杠杆机构，使油缸的水平运动产生的力传动夹板上变为夹板沿圆周的切向力，以达到夹紧车轮的作用。

The device adopts a lever mechanism to change the force generated by the horizontal movement of the oil cylinder to the tangential force along the circumference of the clamping plate, so as to achieve the function of clamping the wheel.
