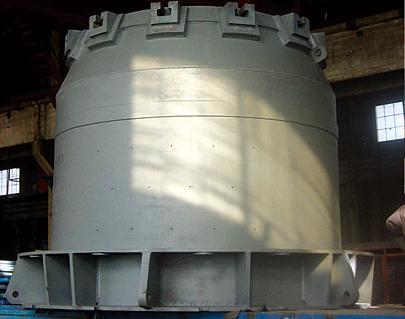

Product Name: converter body 规格型号：40T Specification and model: 40t 用 户：山东石横钢铁有限公司 User: Shandong Shiheng Steel Co., Ltd

Converter

Dalian Tongda mining and Metallurgy Machinery Co., Ltd. has designed and manufactured various specifications of converter, AOD furnace and other smelting equipment for many large iron and steel enterprises in China.

转炉是低速、重载、启制动频繁、冲击大，他的工作状况直接影响到整个转炉车间的正常运转，为了确保转炉生产安全，转炉设备还必须满足以下特殊要求：①当出现塌炉、冻炉及顶渣操作时，转炉倾动速度为0.1～1.35r/min，此时4台电机需同时工作。②在正常倾动力矩下出现下列情况时，倾动装置可短时使用：a. 一台电机损坏，转炉倾动速度为0.2～0.6r/min；b.二台电机损坏，倾动速度为0.2～0.4r/min。

Converter is of low speed, heavy load, frequent starting and braking, and great impact. Its working condition directly affects the normal operation of the whole converter workshop. In order to ensure the safety of converter production, converter equipment must also meet the following special requirements: ① when there is furnace collapse, freezing furnace and slag jacking operation, converter tilting speed is 0.1-1.35r/min, at this time, four motors need to work at the same time. ② The tilting device can be used for a short time in case of the following conditions under the normal tilting torque: A. one motor is damaged and the tilting speed of converter is 0.2-0.6r/min; B. two motors are damaged and the tilting speed is 0.2-0.4r/min.
